Product Details
Section titled “Product Details”Product Names
Section titled “Product Names”- MConn 7”
- MConn 10.1”
- MConn 12.3”
Introduction
Section titled “Introduction”The MConn7, MConn10, and MConn 12.3 are MRS Electronic’s new generation of Connected Displays. They come with a powerful 32-bit multi-core ARM Cortex-A9 processor, 2D, 3D, and Vector Graphics hardware acceleration. Featuring a multi-touch PCAP touchscreen, operators can take advantage of many gestures found on tablets today, including pinch-to-zoom, rotation, flick, and more.
[To Do] Add block diagram of features available in MConn variants
Product Variants
Section titled “Product Variants”- Single Basic
- Quad Basic
- Quad Audio Video
- Quad All-in-One
Screen Sizes

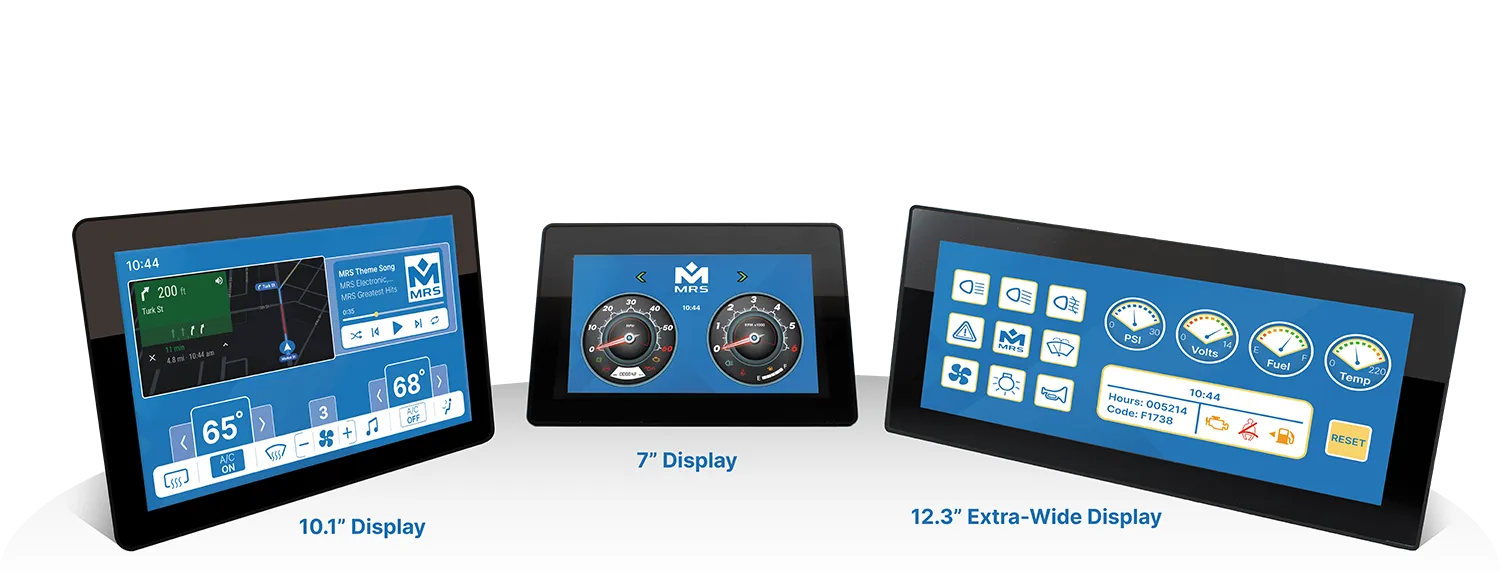

Section titled “Screen Sizes”The display is available in three standard screen sizes: 7”, 10.1”, and 12.3”. Depending on the project volume, customization in other sizes is also possible.
Processor and Performance
Section titled “Processor and Performance”The Standard MConn displays are equipped with powerful iMX6 processor, custom displays with other processors are possible depending on the project volume.
Technical Data
Section titled “Technical Data”- Housing PC-ABS
- Connector
- 1: TE AMPSEAL 35pol.
- 2: TE AMPSEAL 14pol. (for Audio Video and All-in-One variants)
- 3: RJ45 for Gigabit Ethernet
- 4: 2x USB-A
- Colour TFT Display
- 7” (1024 x 600, 800 cd/m²)
- 10.1” (1280x800, 800 cd/m²)
- 12.3” (1920x720, 800 cd/m²)
- Temperature range (acc. to ISO 16750-4)
- Operation -20°C to 70°C
- Storage -30°C to 80°C
- Environmental protection (acc. to IEC 60529)
- IP 54
- IP 65
- Current consumption: ~260 mA @ 24 V / ~460 mA @ 12 V
- Total inputs and outputs 22:
- 12 Digital inputs (2 frequency inputs capable)
- 6 Analog inputs (0 - 12.5V)
- 4 Digital outputs (High Side, 2A each)
- 1x Buzzer
- Multitouch PCAP touchscreen (configurable)
- Dimmable backlight
- Analog Camera 4x in parallel
- Digital Ethernet Camera - Multiple (depends upon resolutions)
- Operating voltage 9 - 32V (Code B at 12 V, Code E at 24 V acc. to ISO 16750-2)
- 11.6 - 32V for 10 V Reference voltage output
- Overvoltage protection ≥ 33 V
- Reverse polarity protection
- CAN Interfaces 2x ISO 11898-2:2016 capable CAN Transceiver
- E1 approval 06 9864
- Electrical tests
- Acc. to ISO 16750 – 2 resp. -4: Short circuit protection Reverse polarity test Ground offset Disconnection of pins and connector Long-term overvoltage at TMax-20K Storage test at TMax and TMin Operation test at TMax and TMin Starting profile (form. Pulse 4 acc. to ISO 7637) Superimposed alternating voltage Slow decrease and increase of supply voltage Momentary drop in supply voltage Reset behaviour at voltage drop
- Acc. to ISO 7637 - 2: Pulse 1, 2a, 2b, 3a, 3b
- Acc. to ISO 10605: Display ESD-resistant up to 15 kV all other ESD-resistant up to 4 kV
Operating System and Software Compatibility
Section titled “Operating System and Software Compatibility”The display operates on Yocto OS kernel version 4.19.35 and is compatible with Qt 5.12.9, providing a stable and versatile platform for various applications.
MConn is an ideal choice for professionals in automotive, agriculture machines, special vehicles, and industries.
